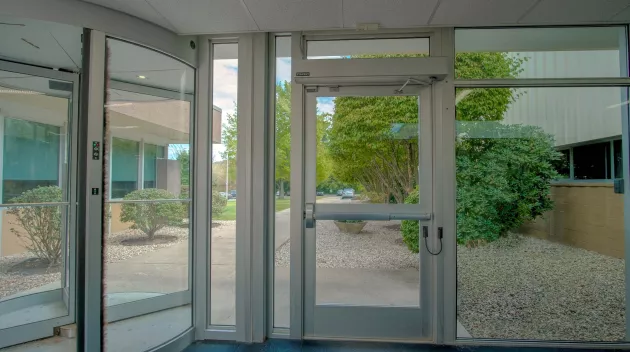

STANLEY M-Force™ Automatic Swing Door Opener

The Next Generation Magic-Force™ redesigned for a versatile solution that’s built to last.

Product Details

Low Energy Features

Full Energy Features

Power Close to compensate for wind and stack pressure
Coordinated Closing for dual panel applications to ensure a proper close and lock or latch
Activation and presence door-mounted sensors

All Applications

Integration with Access Control, Electric Locks, Fire Alarms and more
Lock Release, so locks don’t jam under wind and stack pressure conditions
Sequencing for vestibules
Integrates with third party accessories requiring 24 volts
Custom finishes
Surface mount, overhead concealed (center pivot), and in ground systems available
Door panel weight up to 700 lbs (350 lbs more than original Magic-Force) for applications such as tall retail or high-rise doors, grocery freezer doors, and hospital lead lined X-Ray doors or STC-rated acoustic doors
Fire door package with UL listed equipment

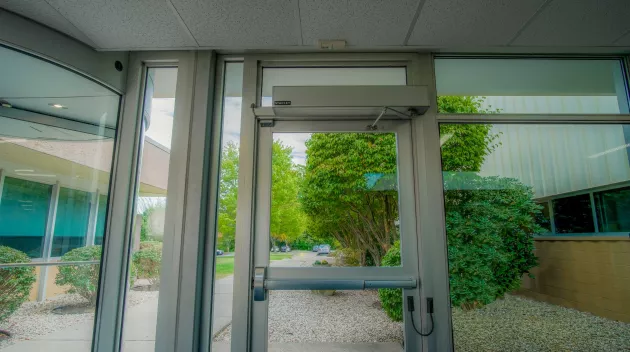

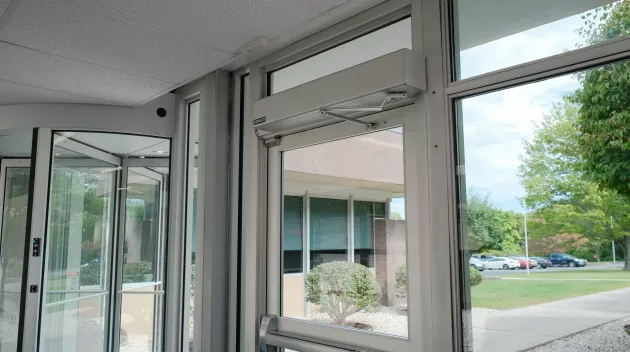

Surface Mount

Semi-concealed or Concealed

Bottom load or In-ground

In-swing or Out-swing

Right hand or Left hand

Header Size	6.0” (152mm) High x 5.5” (140mm) Deep
Swing Door Panels	Up to 48” (1220mm)
Door Panel Weight	700lbs (318kg)
Drive System	3/16HP DC Motor, Gear Drive
Controller	High Resolution iQ Controller, Microprocessor Based, Safety Logic, Fire Alarm Interface, On Board Lock Delay and Power (1 A), Power Close, Force Compensation, Slam Protection.)
Safety Options	Swing-Guard Sensor (Full Energy), Rails (Full Energy), Swing Guard LE Sensor (Low Energy)
Activation Sensor Options	2 Combined Activation/Safety Sensors + Holding Doorway Holding Beams for added safety OPTIONS: Mats, Wall Plates, Wireless Activation systems
Breakout	Automatic Reset (center hung)
Power Required	120 VAC, 5 amps min., 50/60 HZ
Codes and Standards	UL, cUL, ANSI/BHMA A156.10, ANSI/BHMA A156.19, IBC, NFPA 101, CSFM See Asset Library for specific documents.
