Automatic Cart Door

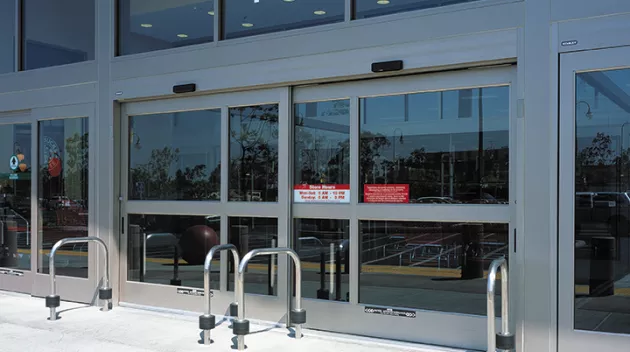

The automatic, sliding Cart Door provides an innovative solution for busy retail stores looking to accommodate carts and carriages while maximizing space.
Product Details
Available Package Width:
Width Range: 108" - 192"
PACKAGE WIDTH CLEAR DOOR OPENING
9' 44 7/8"
11' 56 7/8"
12' 62 7/8"
13' 68 7/8"
14' 74 7/8"
16'. 86 7/8"
| Design | Cart |
| Breakout | None |
| Header Size | 8” (203mm) High x 6” (152mm) Deep |
| Power Required | 120 VAC, 50/60 HZ, 5 Amps Minimum |
| Drive System | 1/4 HP DC Motor, Gear Drive, Toothed belt | OPTION: Twin 1/4 HP DC Gear Driven Motors |
| Controls |
Rotary and Door Position Switches |
| Controller |
High Resolution iQ Controller, Microprocessor Based, Safety Logic |
| Sensors |
Combined Activation/Safety Sensors, and Doorway Holding Beams for Safety | OPTIONAL: Wall plates, Wireless Activation Systems |
| Temperature Rating | -30F to 130F |
| Glass | 1/4", 1/2", 5/8", 1" |
| Threshold | Configurable Options |
* All Specifications are subject to change. Please contact your local sales representative to ensure accuracy.
